BYOD
WP-30

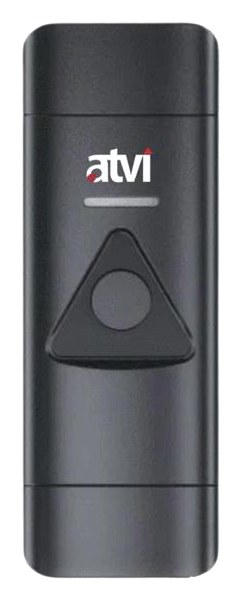

Compact Wireless Presentation Dongle
WP-30 is a compact wireless screen casting system for business trips, small meeting rooms and office displays. It supports Miracast (Android and Windows) and AirPlay (Apple devices) directly — no shared Wi-Fi network, hotspot or app needed — with 1080P output at up to 60Hz. Dual output via HDMI (to a monitor) and USB (to a Windows system), P2P and AP hotspot modes, and PIN-code security make casting simple and secure.
- Miracast & AirPlay
- 1080P @ 60Hz
- Dual Mode (P2P / AP)
- PIN Code Security

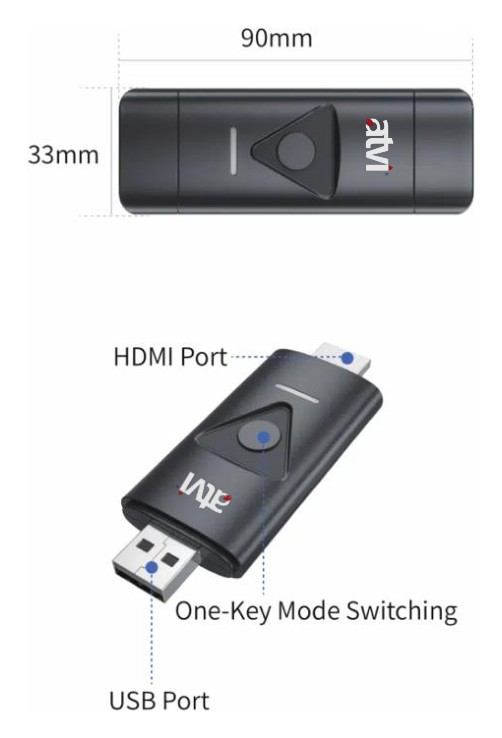

Interface / Button Description
- HDMI port (to display)
- USB port (power / Windows system)
- One-key mode switching (P2P / AP hotspot)
WP-30 Key Advantages
- Single-screen display with extended desktop on Windows and macOS
- Dual output via HDMI (monitor) and USB (Windows system)
- Two modes: P2P direct and AP hotspot (up to 4 concurrent connections)
- AirPlay Direct from Apple devices without a shared LAN or hotspot
- Miracast from Android phones and Windows PCs without Wi-Fi
- Touch-back control via USB or Miracast
- Optional USB transmitter for one-click sharing from Windows
- PIN-code protected screen casting
- Windows 7/8/10/11, macOS 10.11+, iOS 10.9+, Android 5.0+
Technical Specifications
| Interface | HDMI 1.4 / USB-A 2.0 |
|---|---|
| Output Resolution | 1080P @ 60Hz |
| Display Mode | Single screen; extended desktop on Windows / macOS |
| Connections | Up to 4 in hotspot mode (max 8; more needs an external Wi-Fi AP) |
| Operation Mode | P2P mode, AP hotspot mode |
| Wi-Fi | 5G |
| Encryption / Authentication | AES / WPA2-PSK |
| Transmission Distance | Up to 8m (no obstructions) |
| Latency | 50–150ms |
| Touch-back Control | USB or Miracast |
| Secure Casting | PIN code |
| Operating Systems | Windows 7/8/10/11, macOS 10.11+, iOS 10.9+, Android 5.0+ |
| Power | DC 5V, max 2.5W |
| Indicator | Blue — flashing: pairing / connecting; steady: connected |
| Dimensions | 90 × 33 × 12mm (±2mm) |
| Weight | 26g (±2g) |
| Operating / Storage Temp. | 0 – 40°C / -10 – 60°C |
Interested in the WP-30?
Get a quote or book a free live demo with our team.
Specifications and features are subject to change. Refer to the downloadable datasheet for the latest information.
