AT230VB

AT230VB

All-in-One Dual-Lens 4K PTZ Video Bar

The AT230VB is a 4K dual-lens all-in-one video bar for medium to large meeting rooms. A 120° panoramic camera and a 12× optical PTZ close-up camera work with an 8-MEMS beamforming array (8m pickup) and stereo speakers, while AI group framing, speaker and presenter tracking, WiFi 5 BYOM and PoE mic cascade replace a complex multi-device setup.

Dual 4KPanoramic + PTZ

12×Optical zoom

8m8-MEMS pickup

±90°Pan range

2 × 8WStereo speakers

WiFi 5BYOM

← Back to Video Bars

Where It Works

See the AT230VB in the spaces it was built for.

Where it works

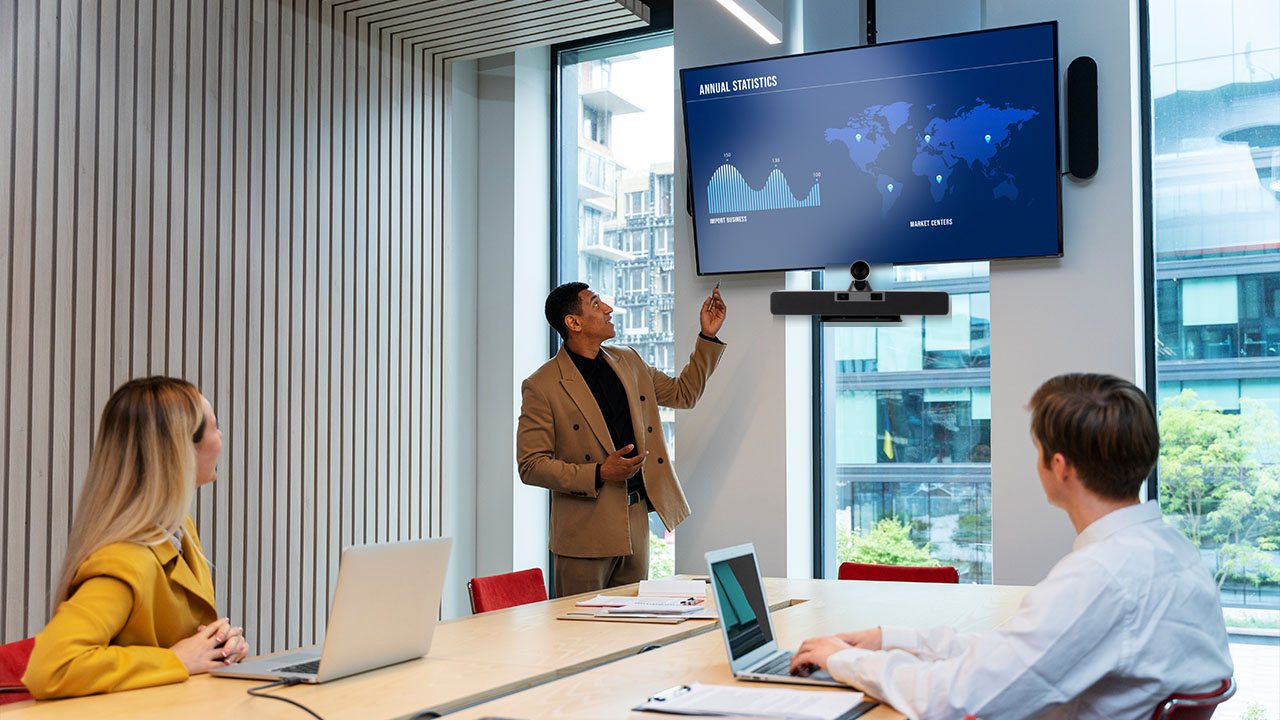

Meeting & Huddle Rooms

Clear video for every small-team call

All-in-one setup — Camera, microphones and speaker in one bar — mount it on the display and plug in one USB cable.
Auto-framing — AI keeps everyone in the room perfectly framed, even as people move.
Works with any platform — Plug-and-play with Zoom, Microsoft Teams, Google Meet and more.

Where it works

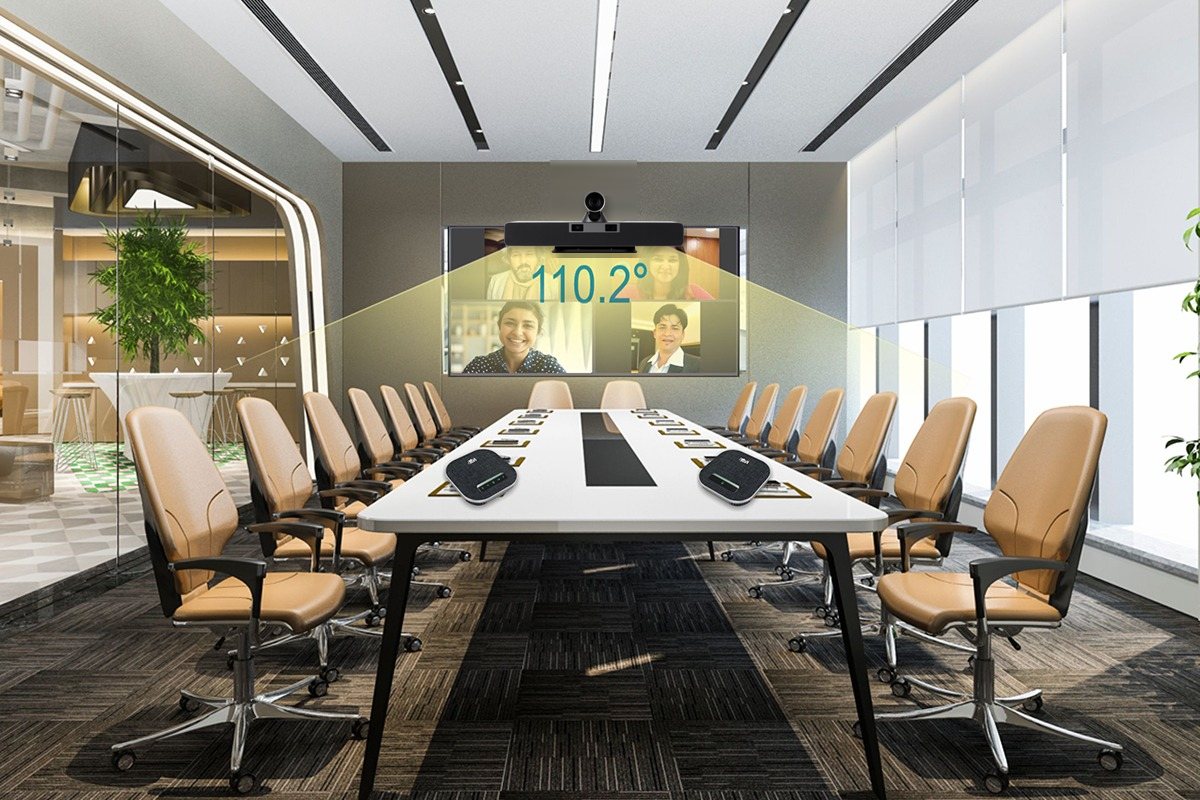

Boardrooms & Conference Rooms

Bring remote teams to the table

Wide-angle view — Captures the whole table so remote participants see everyone.
Speaker tracking — Automatically focuses on whoever is talking for natural conversations.
Professional image — Sharp video with clear audio pickup for important meetings.

Where it works

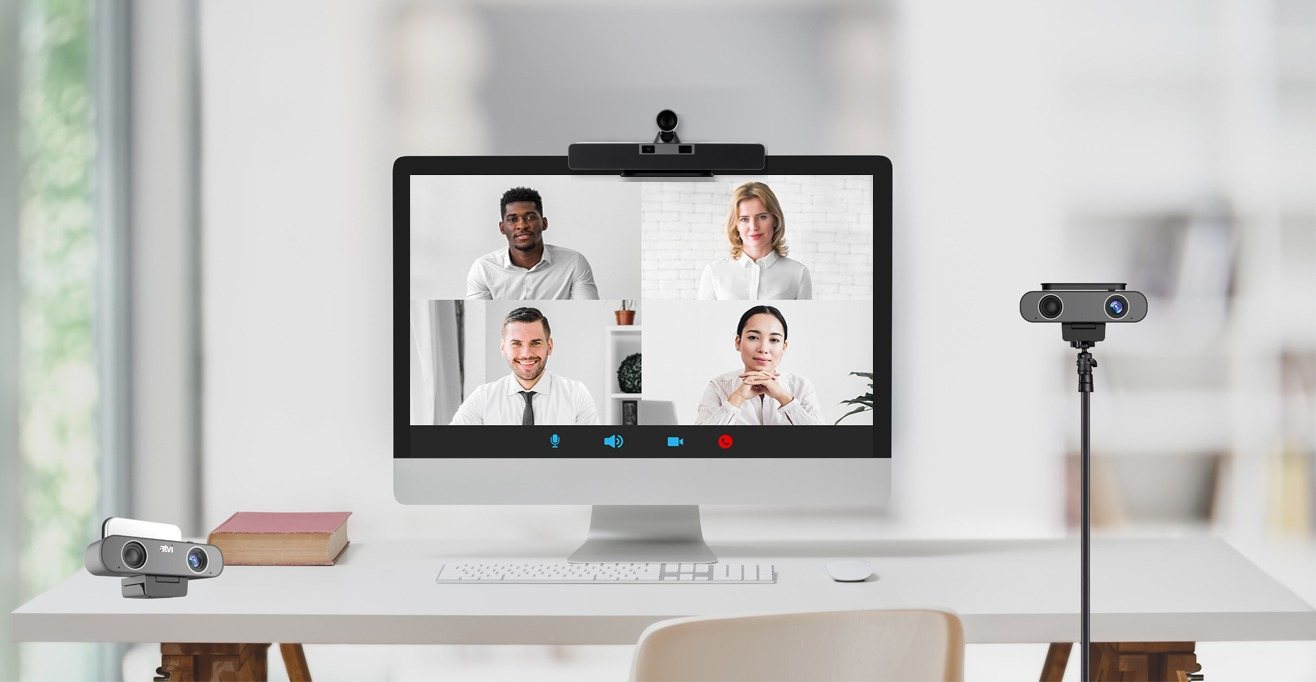

Personal Desks & Home Offices

Look and sound your best on every call

Monitor mount — Sits on top of any monitor or TV with the included clip.
Plug & play USB — No drivers needed — connect to a laptop or PC and start the call.
Clear audio — Built-in microphones pick up your voice and reduce background noise.

AT230VB Key Advantages

120° panoramic + 4K 12× PTZ close-up camera in one unit
AI group framing re-frames as people enter or leave
Speaker tracking points the close-up camera at the active speaker
Presenter tracking with gesture, ReID and ReFace recognition
8-MEMS beamforming mic array with 8m pickup
AI 3A audio: AEC, ANC and AGC
Full-range 2 × 8W stereo speakers at 48kHz
Wired and wireless BYOM over WiFi 5
PoE cascade for up to 3 M702 array mics

Ideal For

Corporate Boardrooms

Auto speaker tracking

Training Rooms

Presenter tracking for instructors

Conference Centres

120° panoramic coverage

Hybrid Workspaces

BYOM and wireless mirroring

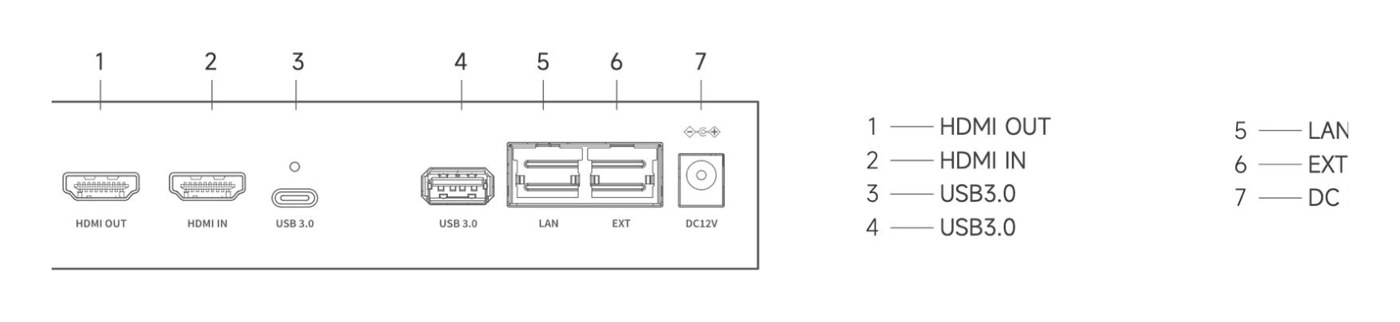

Interface

Technical Specifications

Camera & Audio
Sensors	1/2.5" CMOS close-up (8.29MP) + 1/2.8" CMOS panoramic (8.51MP)
Video Output	4KP30, 1080P30, 1080P60, 720P60
Compression	H.264 / MJPEG / YUY2
USB Protocol	UVC 1.1, UAC 1.0
Audio 3A	AI AEC / ANC / AGC
Speakers	2 × 8W full-range stereo
SNR	> 50 dB
Close-up Camera
Focal Length	f4.4–51.1mm, F1.8–2.6
Optical Zoom	12×
FOV	H 70°–7.4°, V 40°–4.2°
Pan / Tilt	±90° / ±23°
Pan / Tilt Speed	1.7–76°/s / 0.5–15°/s
Panoramic Lens	f2.8mm, 120° diagonal
Connectivity
USB	1 × USB 3.0 Type-C, 1 × USB 3.0 Type-A (reserved)
HDMI	1 × OUT, 1 × IN
Network	1 × RJ45 Gigabit Ethernet
EXT	Expansion mic / BYOM pod
WiFi	WiFi 5, 2.4 / 5GHz
Power	DC 12V; remote control supported
General
Dimensions	600 × 127.1 × 182.1 mm (without stand)
Weight	4 kg
Security	Anti-theft lock socket
Temperature	0 – 40°C; storage -40 – 60°C

Interested in the AT230VB?

Get a quote or book a free live demo with our team.

Book a FREE Demo →

Specifications and features are subject to change. Refer to the downloadable datasheet for the latest information.
