BYOD + BYOM
WP-20

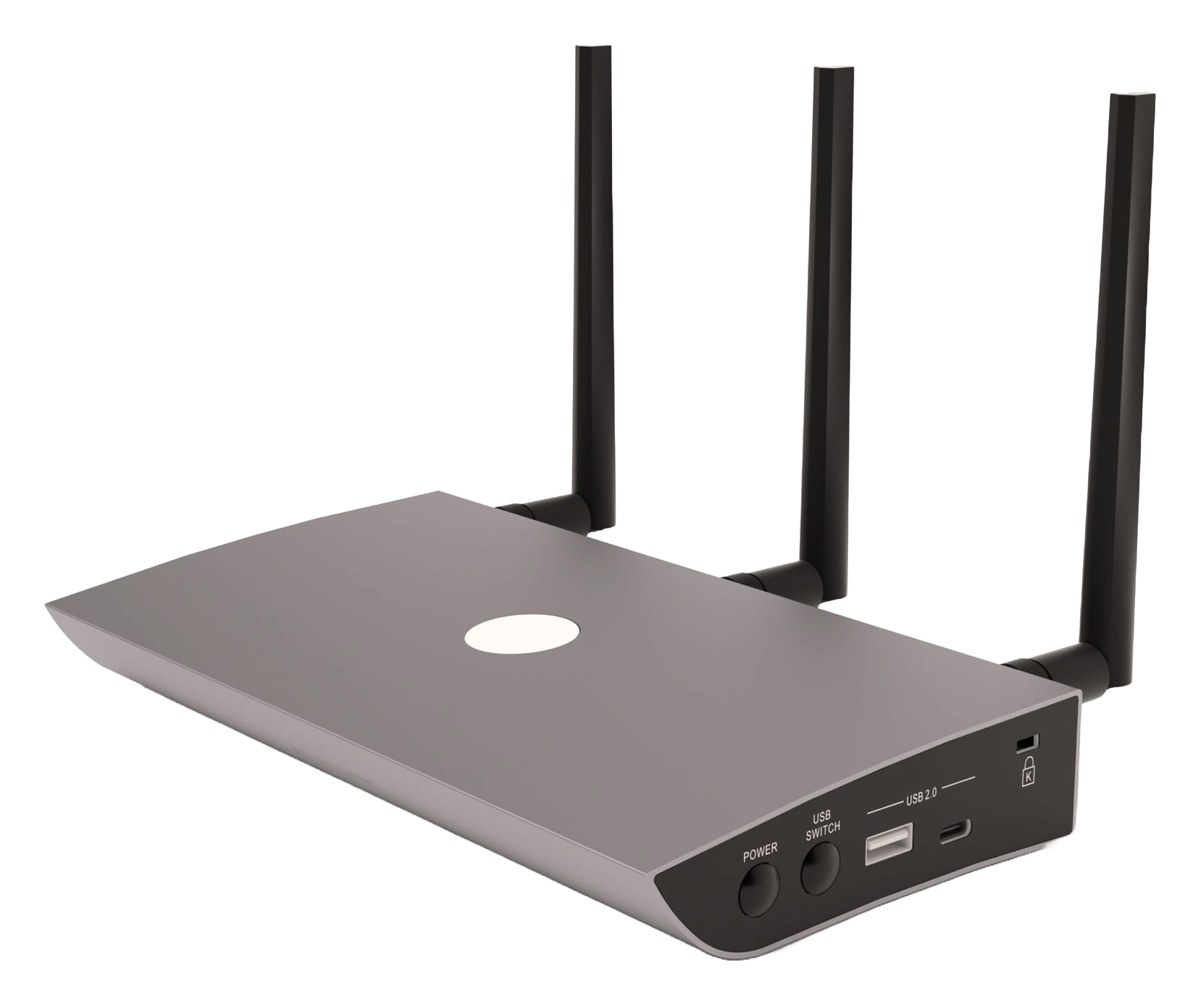

Dual-Screen BYOD + BYOM Wireless Conferencing Solution
WP-20 is a next-generation wireless conferencing solution for both in-room and remote meetings. It supports dual-screen display — one screen for content sharing and the other for video conferencing — and content shown locally can also be shared with remote participants. With HDMI and USB inputs it integrates with an existing room UC system, and lets users switch two USB cameras, microphones and speakerphones between the room PC and a wireless laptop.
- Dual HDMI Output
- 4K HDMI Input
- USB over Wi-Fi
- Dual LAN (Guest / Staff)

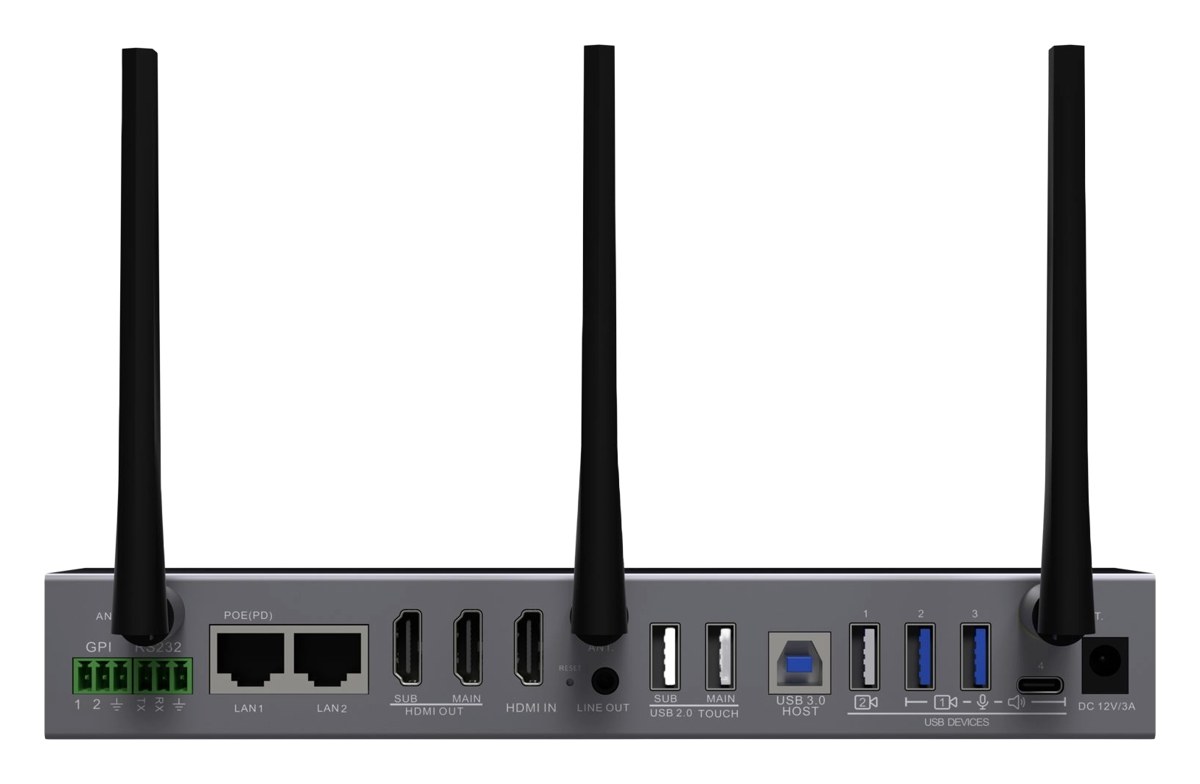

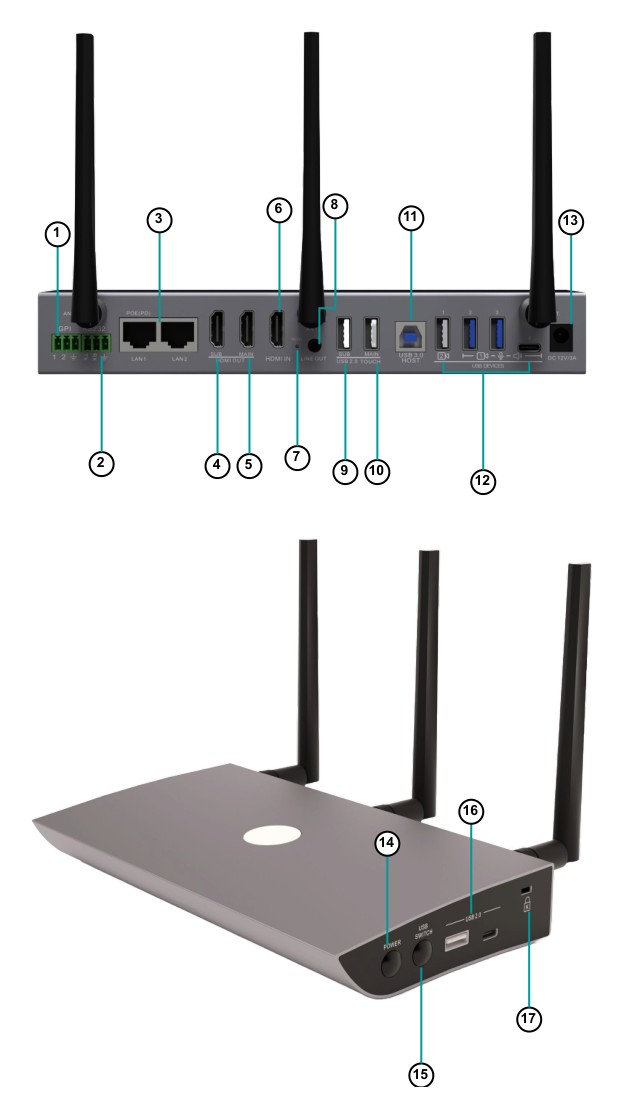

Interface / Button Description
- GPIO interface
- RS232 control port
- 2× LAN ports (network & Telnet control)
- Sub HDMI output
- Main HDMI output
- HDMI input
- Reset button
- 3.5mm audio jack
- Touch HID port (sub output)
- Touch HID port (main output)
- USB-B port (room PC connection)
- 3× USB-A 3.0 + 1× USB-C (camera, speakerphone)
- 12V / 3A power input
- Power / standby button
- USB switching button
- USB-A & USB-C ports (dongle pairing)
- Kensington lock
WP-20 Key Advantages
- Dual HDMI outputs show the same or different content
- Up to four sources shared on a single screen

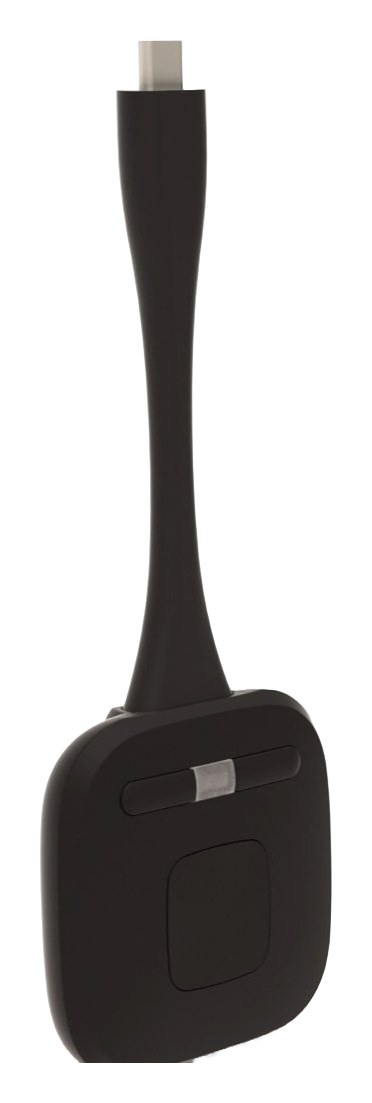

- Wireless sharing via AirPlay, Miracast, Chromecast, app or dongles
- Works with both 1080P and 4K wireless dongles
- 4K HDMI input for high-quality content sharing
- USB camera, microphone and speaker transmitted over Wi-Fi
- Camera switching and USB device handover between room PC and wireless laptop
- Content on the display can be shared with remote participants
- Dual LAN ports isolate staff and guest networks
- Touch-back control over wired and wireless connections (app & dongles)
- Analog audio output, plus RS232 and Telnet control

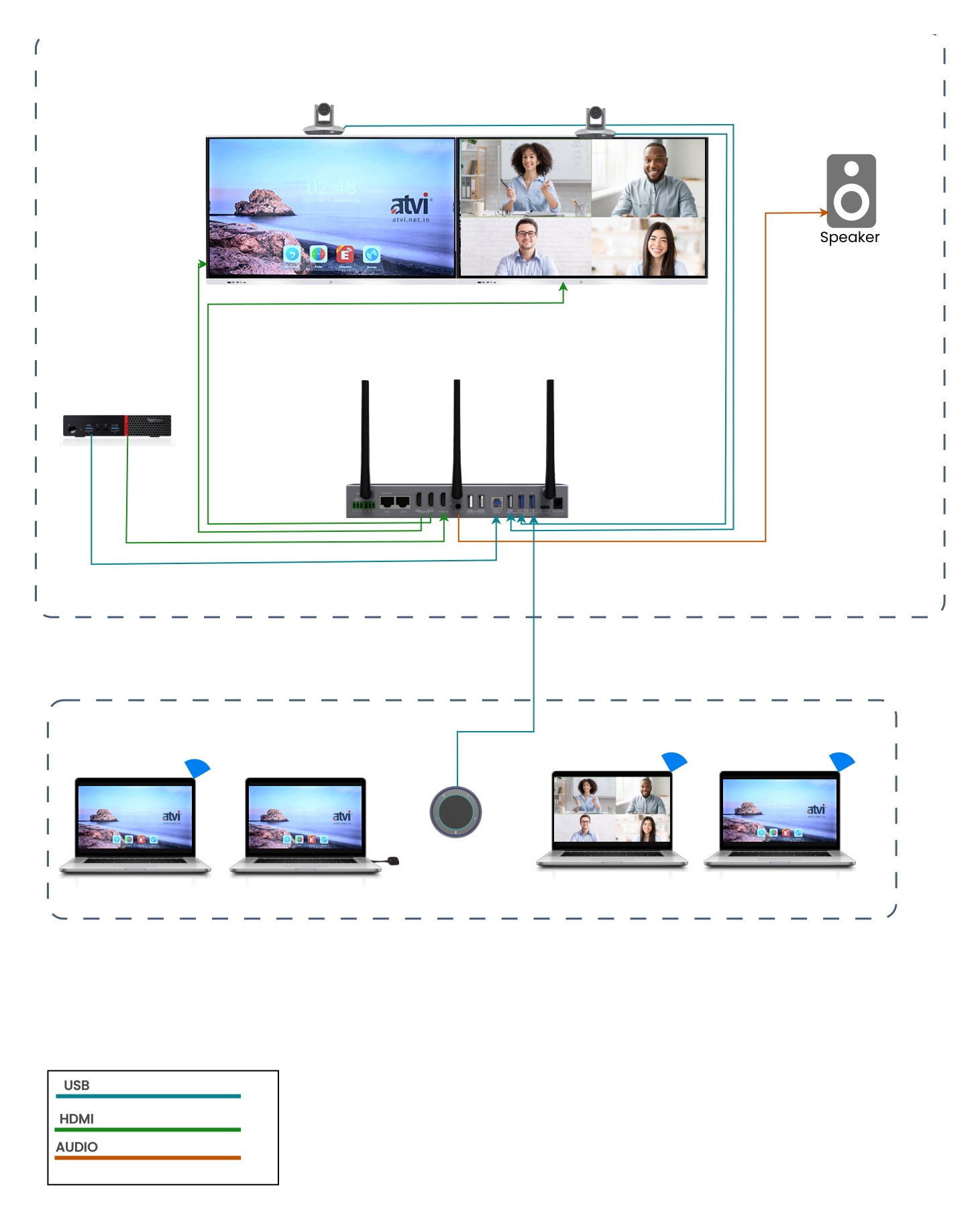

System Diagram
Technical Specifications
| HDMI Output | 1× HDMI 2.0, 1× HDMI 1.4 |
|---|---|
| Main Output Resolution | 3840×2160@60/30Hz, 1920×1080@60Hz, 1280×720@60Hz, 1920×1200@60Hz, 1280×800@60Hz |
| Sub Output Resolution | 1920×1080@60Hz, 1280×720@60Hz, 1920×1200@60Hz, 1280×800@60Hz |
| Format Compliance | HDMI 1.4 / HDMI 2.0 |
| Input Video Capacity | 1080P ≤30Hz AirPlay / Miracast / Chromecast; 4K ≤30Hz HDMI & USB-C dongle; 4K@30Hz HDMI wired |
| HDMI Input | 1× HDMI 19-pin female, HDMI 1.4, HDCP 1.4, CEC |
| Analog Audio Output | 3.5mm jack |
| LAN | RJ45 ×2, 1000Mbps |
| USB | USB-A 3.0 ×3, USB-B 3.0 ×1, Type-C (USB 3.0) ×1, USB 2.0 ×3, Type-C (USB 2.0) ×1 |
| USB Camera over Wi-Fi | ≤1080P@30, MJPG |
| Audio Input | AirPlay / Miracast / Chromecast, Windows / Mac apps, buttons, USB mic |
| Audio Output | Jack, HDMI, Jack + HDMI, USB speaker |
| Control Connectors | 3-pin Phoenix terminal / RS232 |
| Windows on Screen | ≤ 5 |
| Simultaneous Connections | ≤ 16 (max 2× AirPlay / Miracast / Chromecast; unlimited apps & buttons) |
| Frame Rate | 20–60 FPS |
| Latency | 80–120ms |
| Wi-Fi | IEEE 802.11 b/g/n/ac, 2.4 & 5 GHz, up to 1200Mbps |
| Web Security | HTTPS |
| Control Method | Web GUI, Telnet, RS232 |
| Power | DC 12V / 3A, PoE supported |
Interested in the WP-20?
Get a quote or book a free live demo with our team.
Specifications and features are subject to change. Refer to the downloadable datasheet for the latest information.
