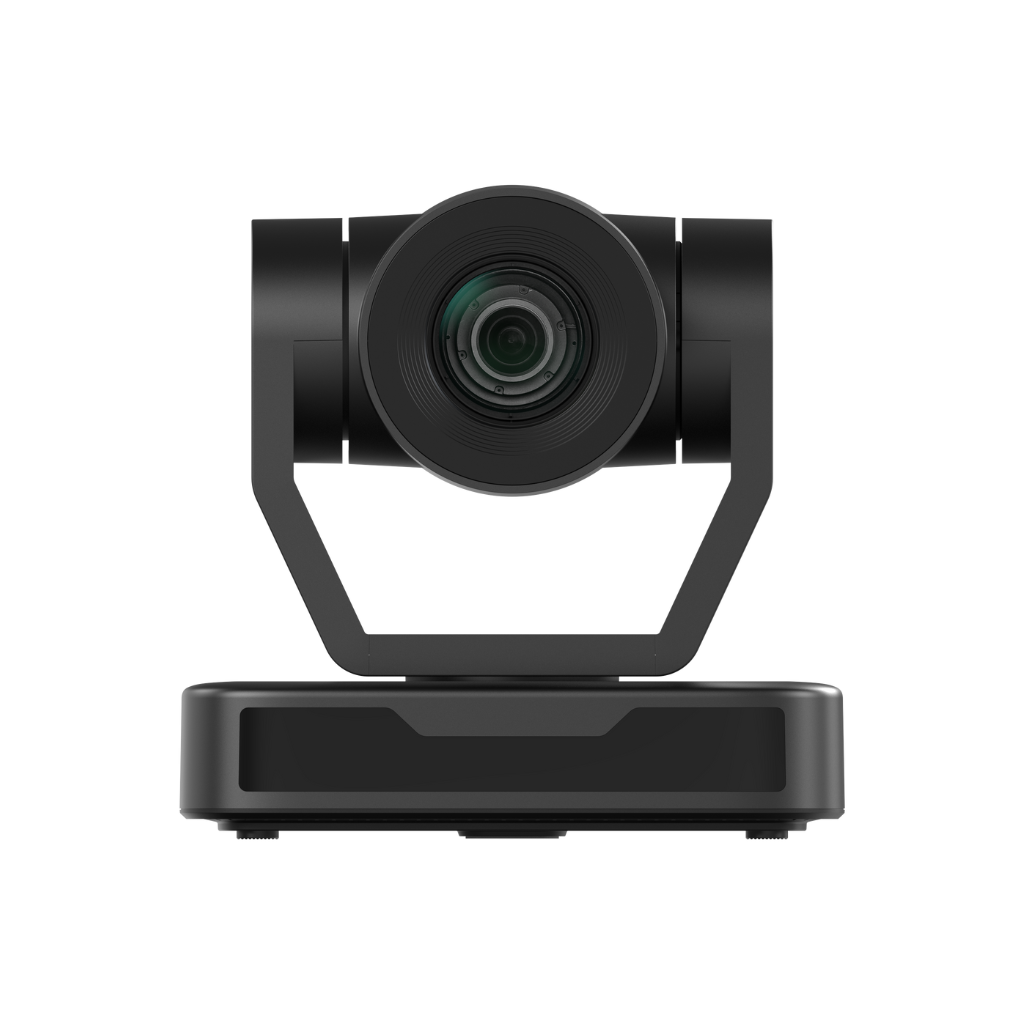

AT2130
Full HD PTZ Camera — Auto Focus, 10X Zoom
The AT2130 is an easy-to-use, multi-purpose Full HD PTZ camera for classrooms, conference rooms and studios. Its 1/2.9" CMOS sensor delivers 1920×1080 at 30fps, with 10X optical zoom, fast auto-focus, 2D/3D noise reduction and an extremely quiet PTZ mechanism.
1080P30 fps
10XOptical zoom
1/2.9"CMOS sensor
AutoFocus
2D/3DNoise reduction
QuietPTZ motor
AT2130 Key Advantages
- Full HD 1920×1080 at 30fps from a 1/2.9" CMOS sensor
- 10X optical zoom (f4.34–41.66mm) plus 10X digital zoom
- Fast, accurate auto-focus with manual and one-push modes
- Low-noise CMOS with 2D/3D noise reduction for clean video
- Extremely quiet stepper-motor PTZ — smooth even at low speed
- VISCA, Pelco-D and Pelco-P with automatic protocol detection
- Low-power sleep mode under 400mW
- USB 2.0, 2 × RS232 and RS485 interfaces
- Wide white-balance range from 3000K to 7000K
Ideal For
Online Education
Lecture capture and live classes

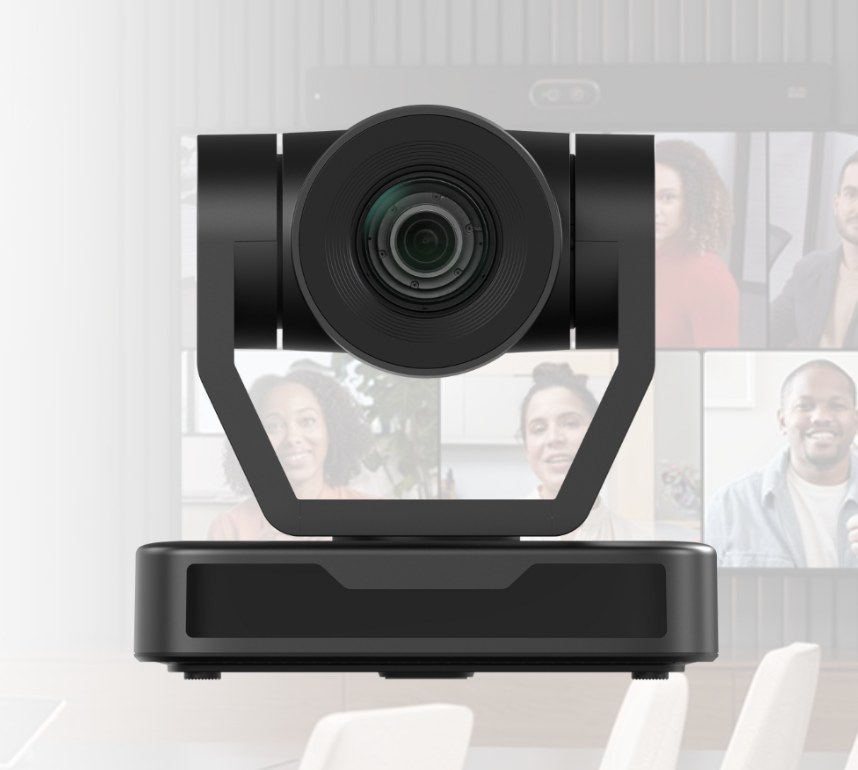

Video Conferencing
Clear HD video for meeting rooms
Webcasting
Broadcast and streaming setups
Tele-medicine
Remote consultations and training
Technical Specifications
| Camera | |
|---|---|
| Model | AT2130-10X |
| Image Sensor | 1/2.9" high-quality CMOS |
| Effective Pixels | 2.07MP, 16:9 |
| Video Format | 1080P / 720P / 1024×576 / 960×540 / 640×360 @ 30/25fps |
| Optical Lens | 10X, f4.34–41.66mm |
| View Angle | 8.8° – 68.8° |
| Digital Zoom | 10X |
| Low Illumination | 0.5 Lux (F1.8, AGC ON) |
| Image | |
| Noise Reduction | 2D & 3D DNR |
| White Balance | Auto / Manual / One Push / 3000K–7000K |
| Focus | Auto / Manual / One Push |
| Electronic Shutter | Auto / Manual |
| BLC | On / Off |
| Control & Interfaces | |

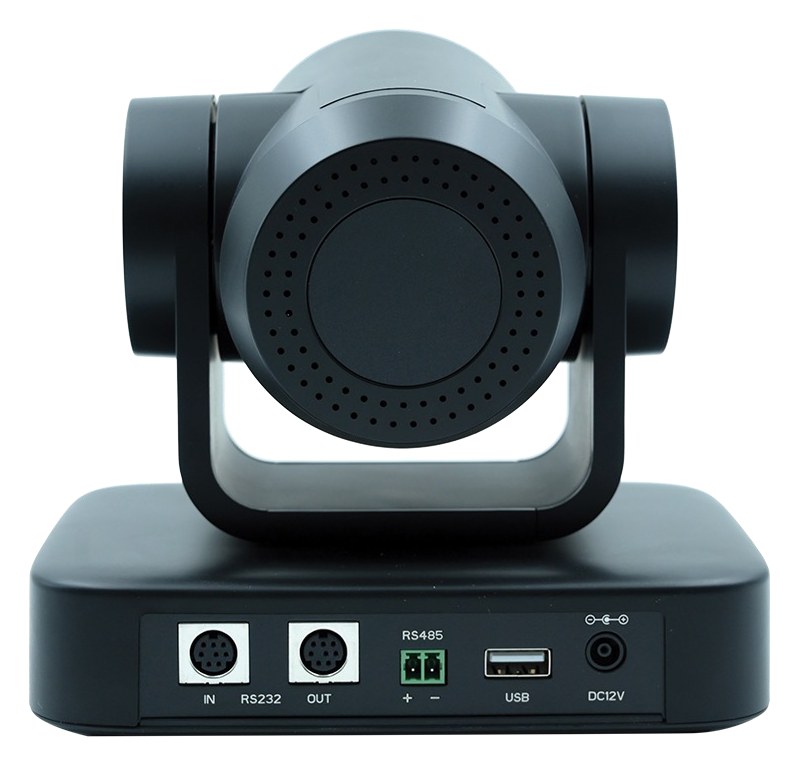

| Interfaces | 1 × USB 2.0 (Type-A), 2 × RS232, 1 × RS485 |
| Control Protocols | VISCA, Pelco-D, Pelco-P (auto identification) |
| Sleep Mode | < 400mW |
Interested in the AT2130?
Get a quote or book a free live demo with our team.
Specifications and features are subject to change. Refer to the downloadable datasheet for the latest information.
