USB EXTENDER
AT UE-50
USB 2.0 CAT5/5e/6 Extender — 50m
The AT UE-50 is a USB 2.0 extender that transmits USB signal up to 50 metres over a single CAT5/5e/6 cable at up to 480Mbps. The transmitter takes one USB-B input from a PC, while the receiver provides two USB 2.0 outputs for printers, U-disks and other peripherals — simple plug-and-play setup with no drivers required.
- USB 2.0 · 480Mbps
- 50m over CAT5/5e/6
- 2 USB Outputs
- Plug & Play

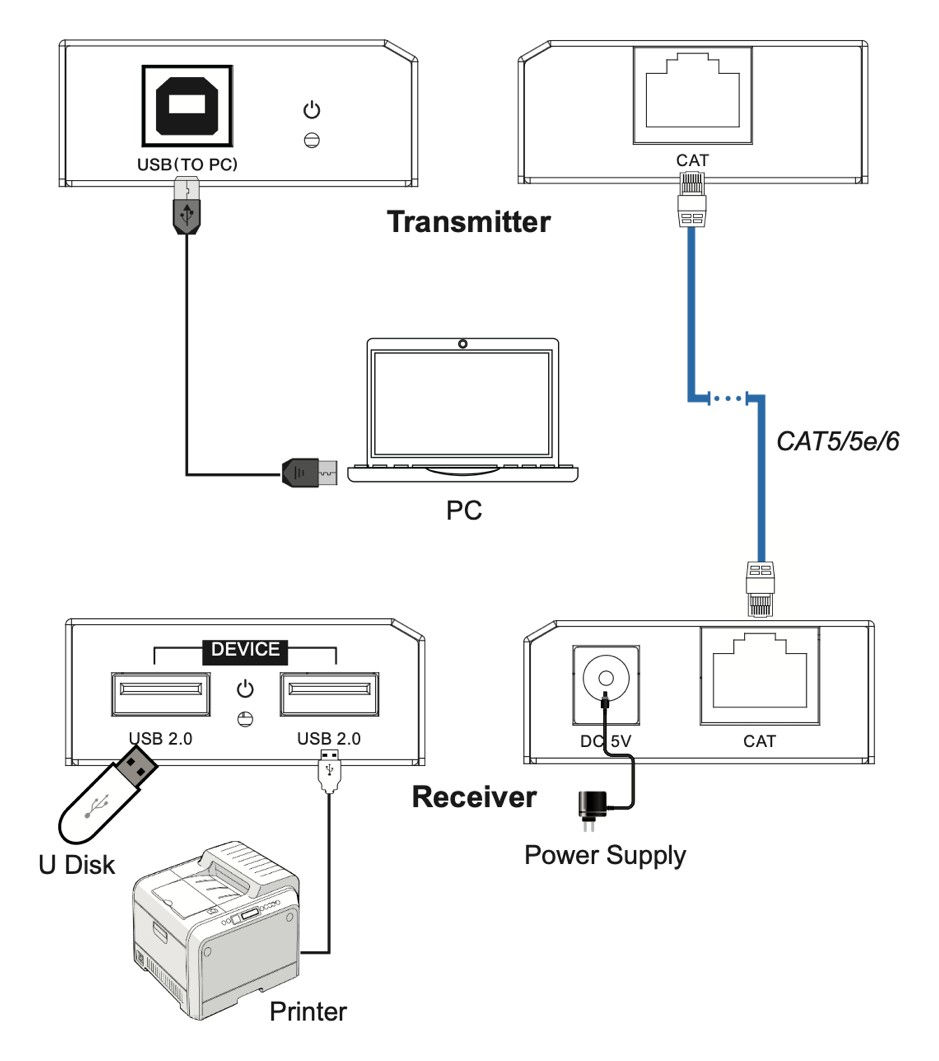

Connection Diagram
- Transmitter: USB-B input (to PC)
- Transmitter: CAT RJ45 output
- Receiver: CAT RJ45 input
- Receiver: 2 × USB 2.0 (USB-A) outputs
- Receiver: DC 5V power input
- Green power LED on each unit
Each extra level of USB hub in the link shortens the CAT cable distance by about 12m (up to 40m with some USB 2.0 hubs), per the USB 2.0 specification.
AT UE-50 Key Advantages
- Extends USB 2.0 up to 50m over a single CAT5/5e/6 cable at up to 480Mbps
- Two USB 2.0 (USB-A) outputs on the receiver — connect a printer and a U-disk together
- Uses standard straight-through (not crossover) UTP cable with RJ45 connectors
- Bus-powered transmitter — no power supply needed at the PC end
- No drivers or software — plug and play
- Compact black metal enclosure, 82 × 49 × 20mm and 100g per unit
- ESD protection: ±8kV air-gap, ±4kV contact (human-body model)
- Rated 0–40°C operating and -20–60°C storage
- Green power LED on transmitter and receiver for quick installation checks
Technical Specifications
| USB Protocol | USB 2.0 |
|---|---|
| Transmission Rate | Up to 480Mbps |
| Transmission Distance | 50m / 164ft (up to 40m / 131ft with some USB 2.0 hubs) |
| ESD Protection | Human-body model: ±8kV air-gap, ±4kV contact |
| Transmitter Input | 1 × USB-B female (to PC) |
| Transmitter Output | 1 × CAT RJ45 female |
| Receiver Input | 1 × CAT RJ45 female |
| Receiver Outputs | 2 × USB 2.0, USB-A female |
| Housing / Colour | Metal enclosure, black |
| Dimensions (TX / RX) | 82 (W) × 49 (D) × 20 (H) mm |
| Weight (TX / RX) | 100g each |
| Power Supply | Input AC 100–240V 50/60Hz, output DC 5V / 1A |
| Power Consumption | Transmitter 0.7W, Receiver 1W |
| Operating Temperature | 0 – 40°C / 32 – 104°F |
| Storage Temperature | -20 – 60°C / -4 – 140°F |
| Relative Humidity | 20 – 90% RH, non-condensing |
| In the Box | 1 × transmitter, 1 × receiver, 1 × USB cable (USB-B to USB-A, 1m), 1 × 5V/1A power adapter, 1 × user manual |
