4K Binocular Teacher-Student Tracking Camera

The AT240 is a compact 4K intelligent binocular tracking camera with a close-up teacher lens and a 110° panoramic student lens in one body. Built-in tracking follows the teacher without extra hardware, dual mics pick up 6–7m, and USB 3.0 Type-C or PoE LAN make installation simple — ideal for classrooms, training rooms and hybrid learning.

4KClose-up 3840×2160

110°Student panorama

AITeacher tracking

6–7mDual-mic pickup

PoE802.3af LAN

255Presets

← Back to Video Bars

Where It Works

See the AT240 in the spaces it was built for.

Where it works

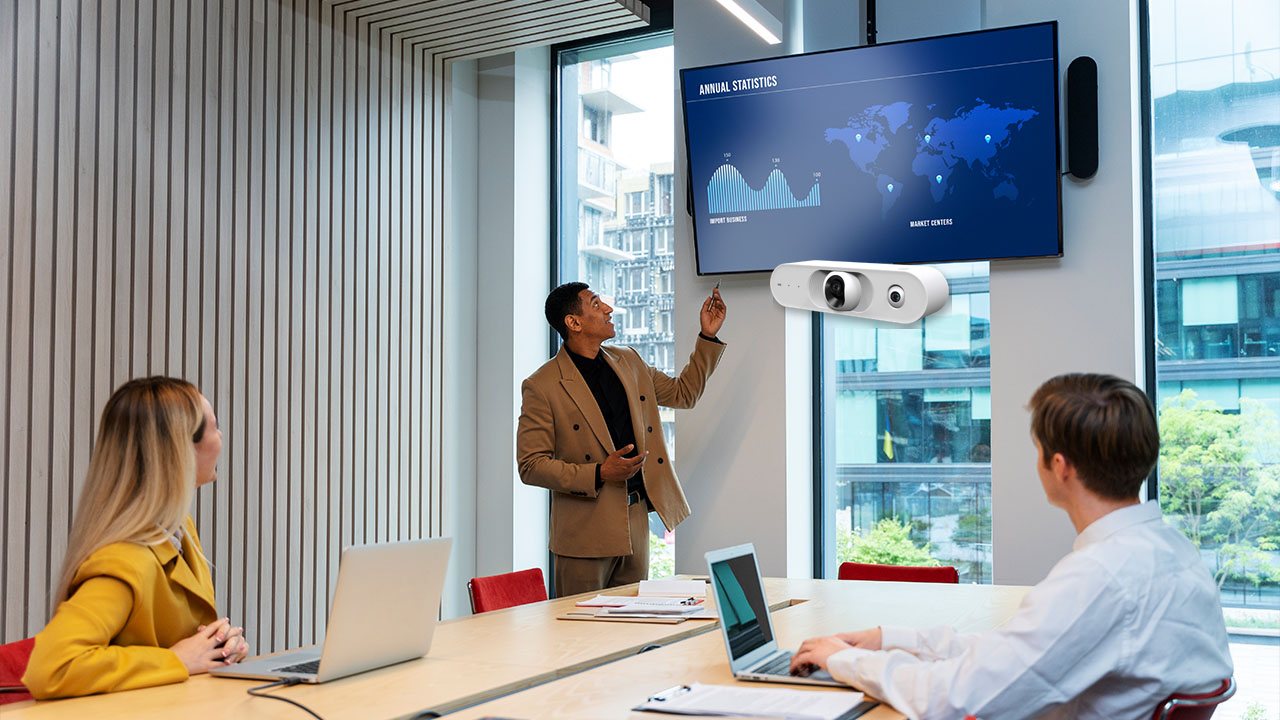

Training Rooms

Capture the trainer and the class

Dual-lens tracking — A close-up lens follows the presenter while the wide lens shows the room.
Single USB connection — USB 3.0 Type-C plug-and-play for lecture capture and online sessions.
Built-in microphones — Dual mics capture the trainer clearly for remote learners.

Where it works

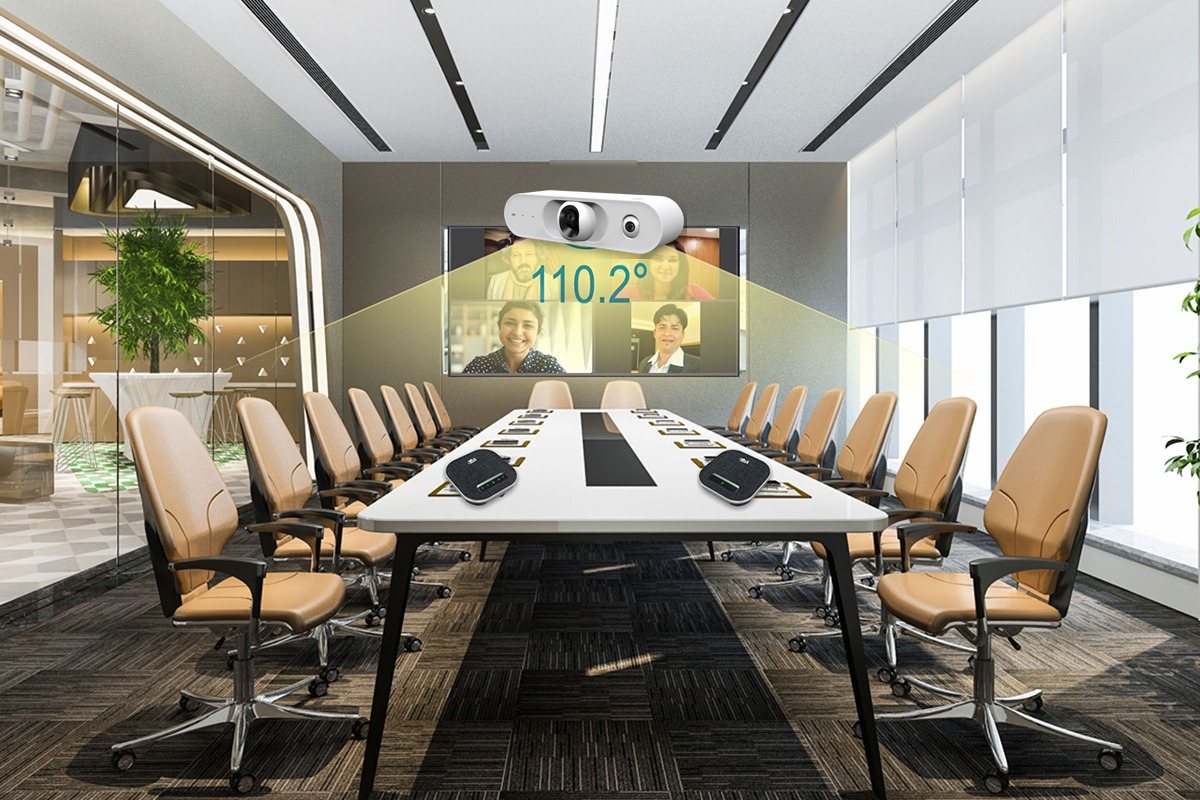

Lecture Halls & Auditoriums

Hybrid learning for large rooms

Teacher-student tracking — Automatically switches between the teacher and students who speak.
4K close-up — Sharp detail on the presenter, whiteboard and slides.
PoE option — One network cable for power and data simplifies installation.

Where it works

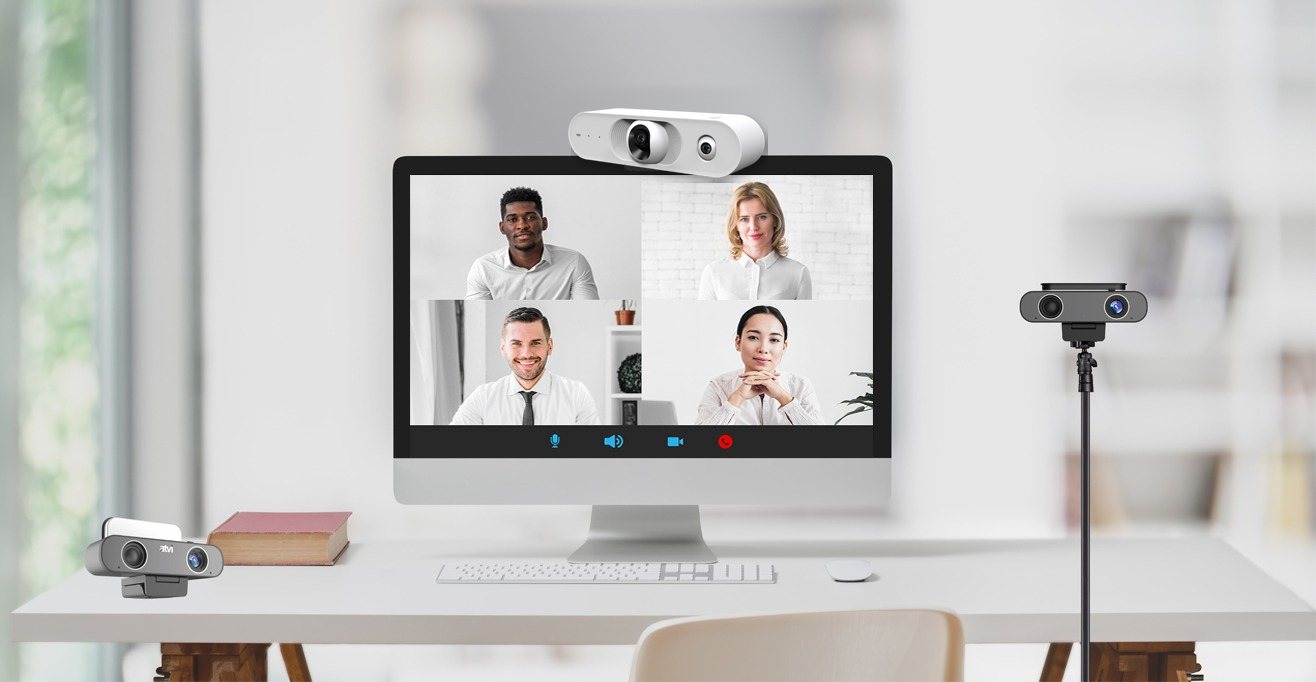

Online Classes & Recording

Teach and record from anywhere

Lesson recording — Record lectures for students to watch again later.
Wide 110° view — Distortion-free wide lens shows the whole teaching space.
Plug & play — Works with popular classroom and meeting software.

AT240 Key Advantages

Close-up (4K) and panoramic (2880×1616) lenses in one body
Built-in tracking — no extra positioning camera or host
Hybrid mechanical + electronic pan-tilt with autofocus
Distortion-free 110° wide-angle student view
Built-in dual mics with 6–7m pickup
USB 3.0 Type-C for PC, or LAN with PoE
H.264 / H.265 with RTSP, RTMP, ONVIF, GB/T28181, IP VISCA
Compact 270 × 70 × 76.5mm, 0.639kg
UVC H.264 / MJPEG / YUY2 up to 4K30

Ideal For

Classrooms

Track teachers and capture students

Training Rooms

All-in-one instructor camera

Huddle Spaces

Close-up and wide views

Hybrid Learning

Stream lessons with auto tracking

Technical Specifications

Teacher Camera (Close-up)
Sensor	1/2.7" HD CMOS, 8.31MP, 16:9
Focal Length / View	f16.26mm / 20.1°
Iris	F1.6
Digital Zoom	Approx. 4×
Min. Illumination	0.5 Lux (F2.0, AGC ON)
Auto Focus	Supported
Student Camera (Panoramic)
Sensor	1/2.7" HD CMOS, 4.68MP, fixed focus
Teacher Panoramic	f7.86mm, 45° H, F2.6
Student Lens	f2.03mm, 110° H, F2.2
Vertical Rotation	0° to -20° (manual)
Video & PTZ
Compression	H.264, H.265
Protocols	RTSP, RTMP, ONVIF, GB/T28181, IP VISCA
LAN Streams	Close-up 3840×2160P30; panoramic 2880×1616P30
UVC	H.264 / MJPEG / YUY2, max 3840×2160P30
Pan / Tilt	±40° / -30° to +5°, 40°/s
Presets	255 (10 via remote)
Audio, Interface & General
Audio	Built-in dual mics, 1 × line-in; AAC, G.711A
Outputs	1 × USB 3.0 Type-C, 1 × LAN 100M (PoE 802.3af)
Power	DC 12V, 10W max
Dimensions / Weight	270 × 70 × 76.5 mm / 0.639 kg
Working Temperature	0 – 40°C

Interested in the AT240?

Get a quote or book a free live demo with our team.

Book a FREE Demo →

Specifications and features are subject to change. Refer to the downloadable datasheet for the latest information.
