BYOD
WP-10
BYOD Wireless Presentation System
WP-10 is a smart and reliable wireless presentation system designed for modern meeting and classroom environments. It supports BYOD (Bring Your Own Device), allowing users to present wirelessly from Windows, macOS, Android or iOS devices. Share your screen easily via dongle, dedicated apps, or through AirPlay, Miracast and Chromecast — fast, cable-free collaboration with clear visuals and a simple setup.
- 4K HDMI 2.0 Output
- AirPlay / Miracast / Chromecast
- HDMI & Type-C Dongles
- Whiteboard & Annotation

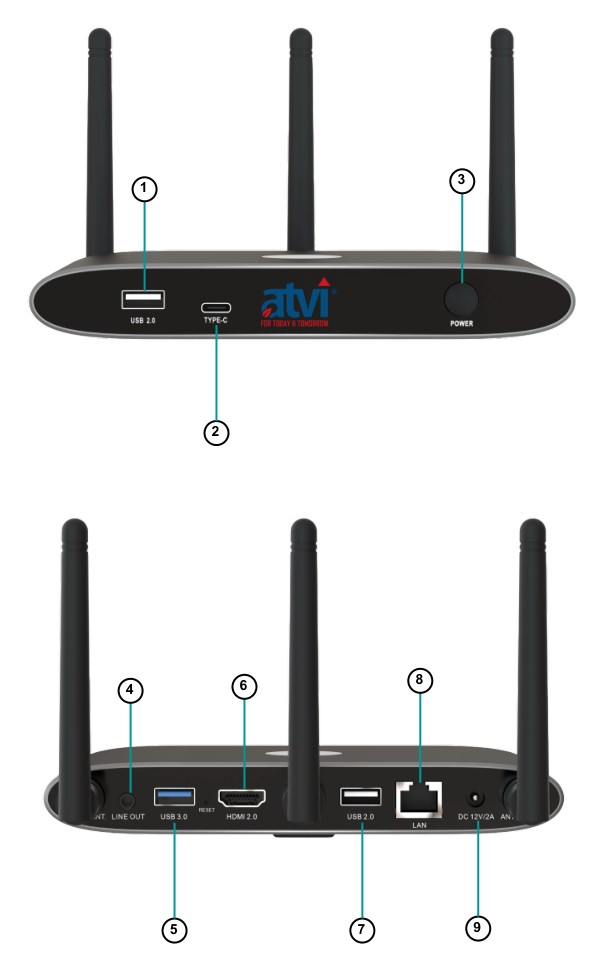

Interface / Button Description
- USB 2.0
- Type-C
- Power button
- LINE OUT 3.5 mm
- USB 3.0
- HDMI 2.0 output
- USB 2.0
- LAN
- DC 12V / 2A power
WP-10 Key Advantages
- Wireless content sharing up to 4K resolution with HDMI 2.0 output
- Native wireless mirroring: AirPlay, Miracast and Chromecast
- Built-in Miracast Wi-Fi module
- Plug-and-play HDMI / Type-C dongles for wireless presentation
- Android, Mac and Windows apps for wireless presentation
- Two-window view on a single screen
- OSD control with preview function
- Whiteboard and annotation support
- Customisable home screen page
- Central management platform available

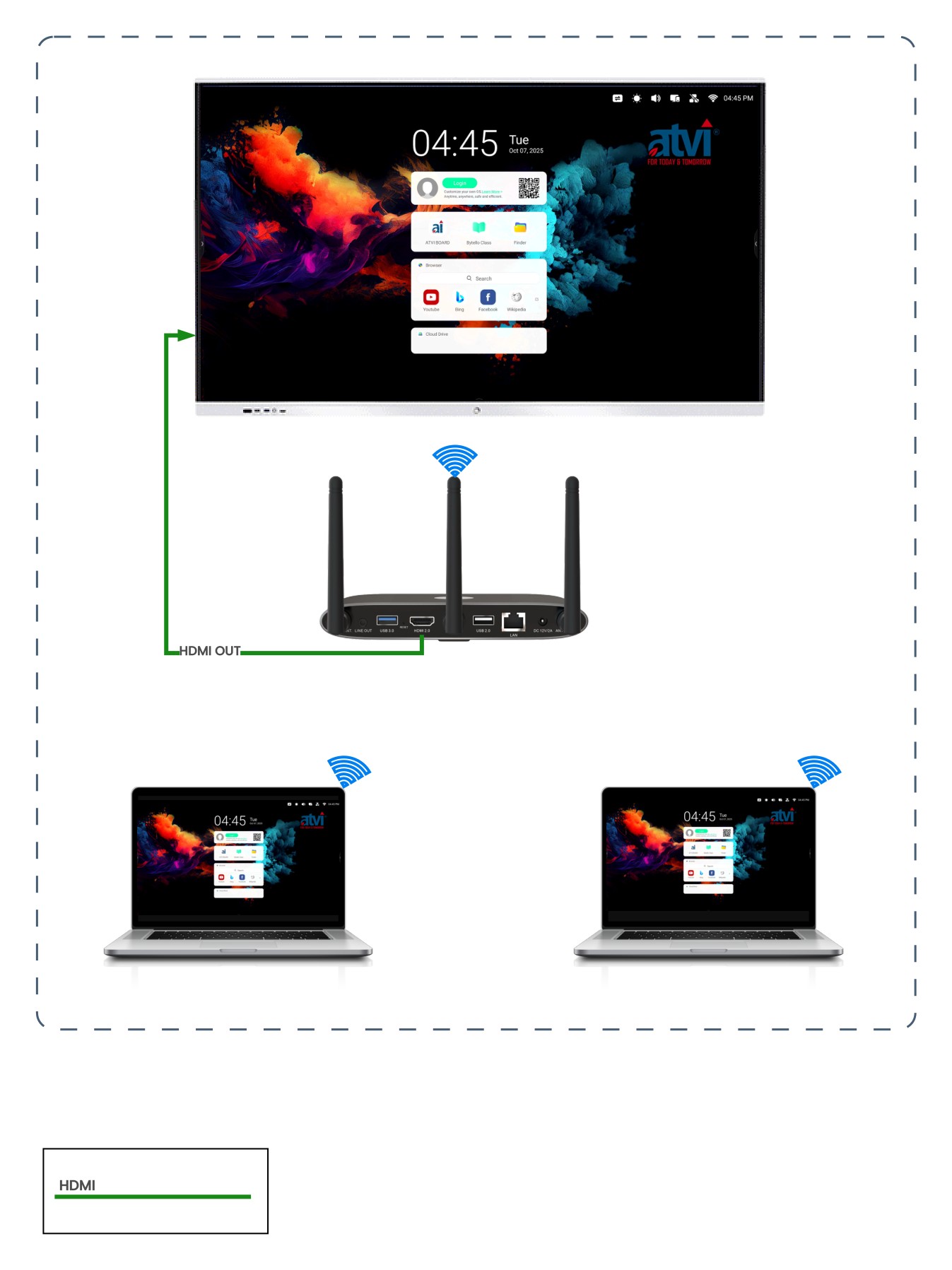

System Diagram
Technical Specifications
| Video Output | HDMI 2.0, up to 4K |
|---|---|
| Wireless Mirroring | AirPlay, Miracast, Chromecast |
| Sharing Methods | HDMI / Type-C dongle, Windows / macOS / Android / iOS apps |
| Split Screen | 2 windows on a single screen |
| Interfaces | USB 2.0 ×2, USB 3.0, Type-C, HDMI 2.0, LAN, 3.5mm line out |
| Power | DC 12V / 2A |
| Features | OSD control with preview, whiteboard & annotation, custom home screen |
| Management | Central management platform |
Interested in the WP-10?
Get a quote or book a free live demo with our team.
Specifications and features are subject to change. Refer to the downloadable datasheet for the latest information.
