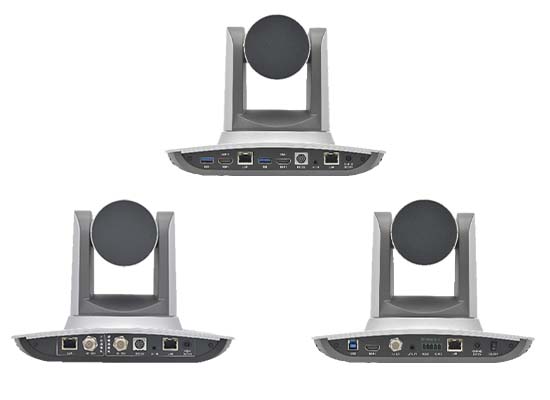

ATVI AT2180 PTZ Dual-Lens Camera with Education Mode Tracking
EDUCATION CAMERA

AT2180

PTZ Dual-Lens Camera with Education Mode Tracking

The AT2180 is a professional education camera with an advanced algorithm that detects and tracks the speaker within a defined zone. A 1/2.8" Full HD PTZ tracking lens (12X or 20X optical zoom, up to 1080P60) works with a panoramic lens that shows the whole classroom, while quiet PTZ motors, 2D/3D noise reduction and ONVIF / RTSP / RTMP streaming make it ideal for lecture capture and hybrid classes.

1080P60Full HD tracking
12X / 20XOptical zoom
Dual lensTracking + panoramic
AIZone tracking
H.264+Compression
SDI / USB 3.0+ HDMI / LAN
← Back to Education Cameras

AT2180 Key Advantages

  • Dual lens: PTZ tracking camera plus panoramic camera in one unit
  • Advanced human detection, locking and tracking within a defined zone
  • 1/2.8" CMOS, 1920×1080 at up to 60fps
  • 12X (f3.9–46.1mm, 72.5° wide) or 20X (f4.7–94mm, 60.7° wide) optical zoom
  • Fast, accurate and stable auto-focus
  • Low-noise CMOS with 2D / 3D noise reduction, SNR > 55dB
  • H.264 / H.264+ — 1080P60, or two 1080P30 streams
  • ONVIF, RTSP and RTMP with RTMP push
  • Extremely quiet stepper-motor PTZ; sleep mode under 400mW

Ideal For

Classrooms

Track teachers within the teaching zone

Lecture Halls

Long 20X zoom for large rooms

Lecture Capture

Record and stream lessons

Hybrid Learning

Panoramic + close-up for remote students

Technical Specifications

Tracking Camera
ModelsAT2180-12X / AT2180-20X
Sensor1/2.8" HD CMOS, 2.07MP, 16:9
Video Signals1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/30/25
Optical Zoom12X f3.9–46.1mm / 20X f4.7–94mm
View Angle12X: 6.3°–72.5° / 20X: 2.9°–60.7°
Iris12X: F1.8–F2.4 / 20X: F1.6–F3.5
Digital Zoom10X
Min. Illumination0.5 Lux (F1.8, AGC ON)
Noise Reduction2D & 3D
White BalanceAuto / Manual / One Push / 3000K–7000K
Focus / Aperture / ShutterAuto / Manual
BLC / WDROn / Off; dynamic range adjustment
SNR> 55dB
Panoramic Camera
Sensor1/3" HD CMOS, 2.1MP
LensManual focus
2.8mm Lens (D/H/V)125° / 100° / 75°
4mm Lens (D/H/V)89.6° / 71° / 52.2°
6mm Lens (D/H/V)67.0° / 59° / 32.5°
Interfaces & Protocols
Video InterfaceSDI model: 3G-SDI, LAN · HDMI U3 model: HDMI, USB 3.0, LAN
Network100M Ethernet (10/100BASE-TX), 5G WiFi optional, VISCA
ControlRS232 / RS485
Audio Input3.5mm line in; 8–48kHz sampling, AAC / MP3 / PCM
CompressionH.264 / H.264+
StreamingONVIF, RTSP, RTMP (push)
Sleep Mode< 400mW

Interested in the AT2180?

Get a quote or book a free live demo with our team.

Book a FREE Demo →

Specifications and features are subject to change. Refer to the downloadable datasheet for the latest information.
