AT MV-400
Multi-Viewer | 4K30 HDMI 4×1 Quad Multi-Viewer
AT MV-400

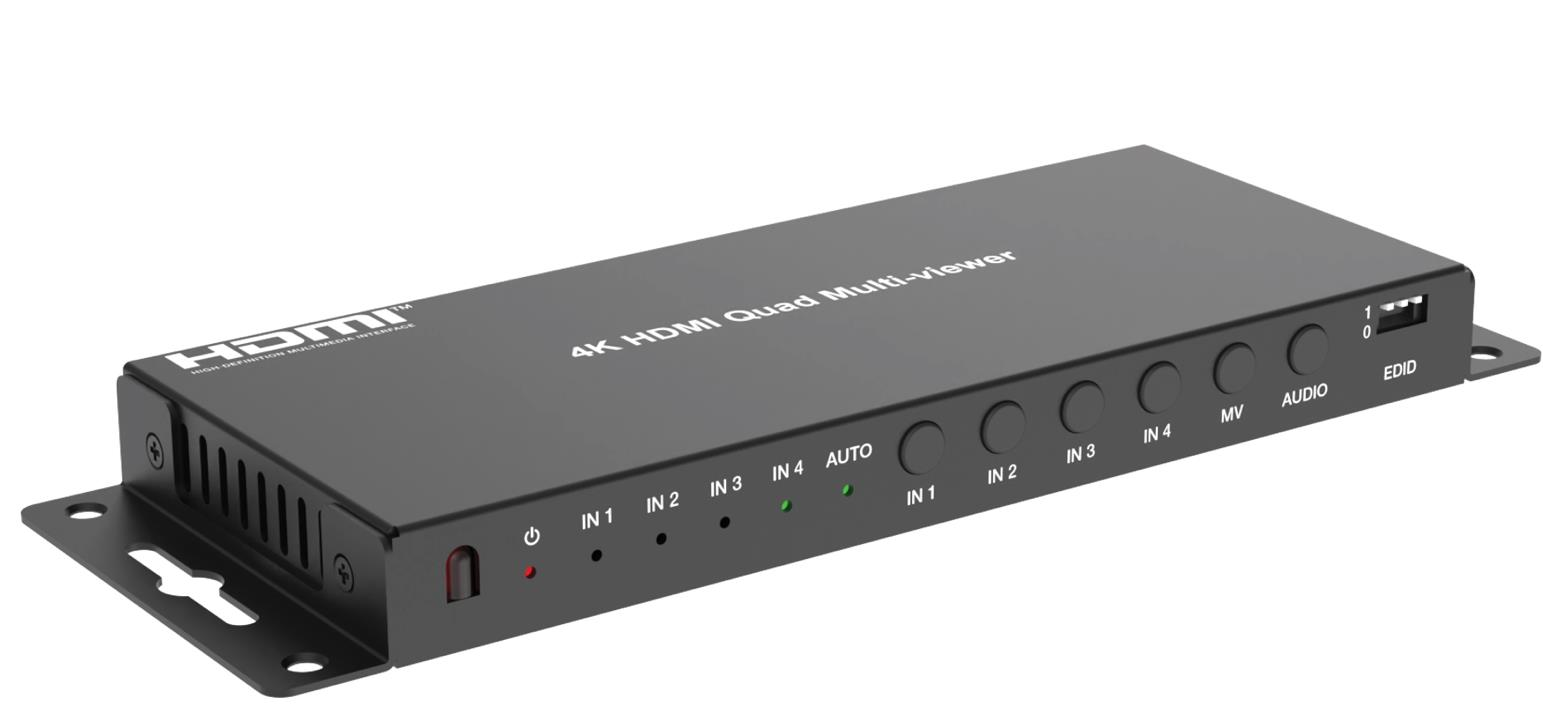

The ATVI AT MV-400 is a 4K30 HDMI 4×1 quad multi-viewer and seamless switcher designed to display four HDMI video inputs on a single UHD monitor. It supports up to 4K@30Hz input, eight display modes, seamless switching, audio de-embedding, HDCP 1.4, and RS-232 control.
Product Key Features
- ✓4K30 multi-view display
- ✓Seamless switching between input sources
- ✓Eight display modes: Single, PIP, PBP, Triple, and Quad
- ✓Auto and manual switching
- ✓3.5mm audio de-embedding
- ✓HDCP 1.4 compliance
- ✓Advanced EDID management
- ✓RS-232 and IR control
- ✓Compact metal chassis
Technical Specifications
| Input Resolution | Up to 4K@30Hz |
|---|---|
| HDMI Inputs | 4 |
| Display Modes | 8 modes |
| Video Bandwidth | Up to 10.2 Gbps |
| Audio Output | 3.5mm L/R stereo |
| Control | RS-232 / IR |
| Dimensions | 176 × 68 × 18mm |
| Weight | 300g |
