BYOD + BYOM
WP-12

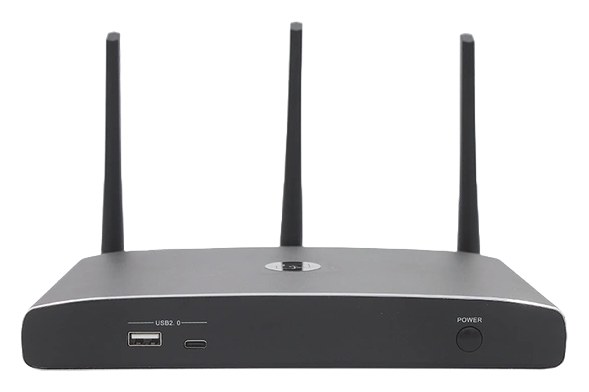

BYOD + BYOM Wireless Conferencing System
WP-12 is an advanced and reliable wireless conferencing system designed for seamless hybrid meetings and collaboration. It supports BYOD + BYOM (Bring Your Own Device & Meeting), letting users connect wirelessly to the room's USB camera, microphone and speakerphone. Run smooth wireless video conferences from any Windows, macOS, Android or iOS device, and share screens via dongle, apps, AirPlay, Miracast or Chromecast.
- BYOD + BYOM
- 4-Way Split Screen
- PoE Powered
- Dual Network (Guest / Staff)

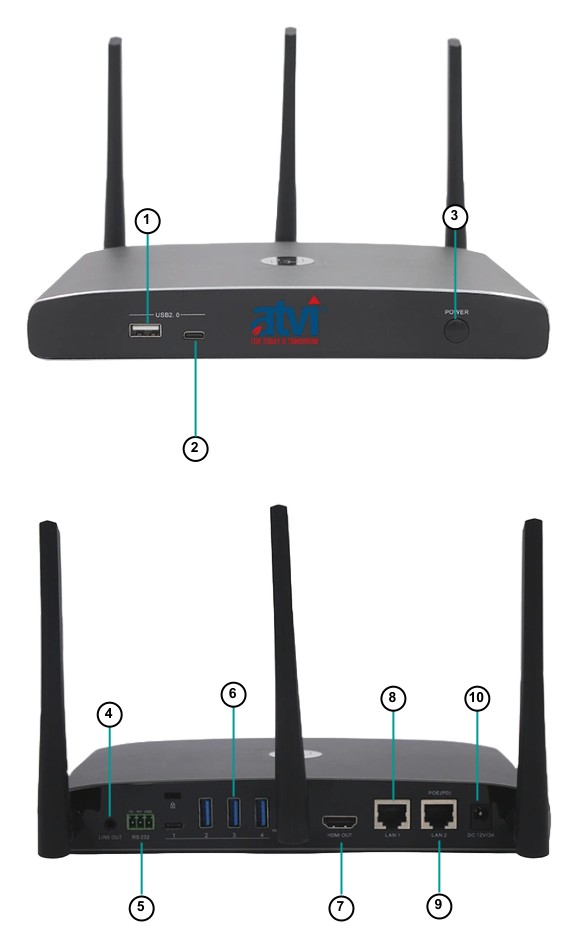

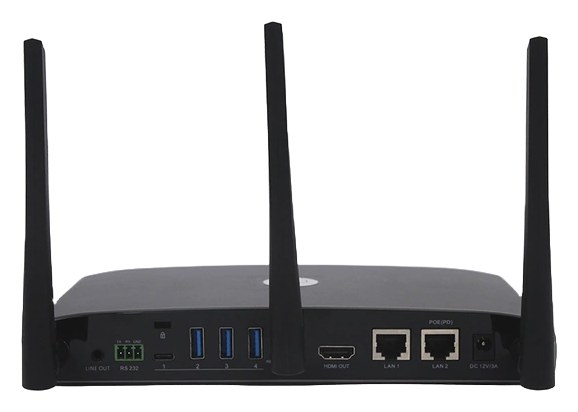

Interface / Button Description
- USB 2.0
- Type-C
- Power button
- LINE OUT 3.5 mm
- RS232
- USB 3.0
- HDMI 2.0 output
- LAN 1
- LAN 2 (PoE)
- DC 12V / 2A power
WP-12 Key Advantages
- Pure wireless presentation with BYOD — no messy cables
- Wireless connection between laptop and room USB camera, mic and speaker for easy video conferencing
- Wireless content input up to 1080P with HDMI 2.0 output
- Native mirroring: AirPlay, Miracast and Chromecast
- Plug-and-play HDMI / Type-C dongles for instant connection
- Up to 4 split-screen displays simultaneously
- Reverse (touch-back) control of the laptop from the touch screen
- Best-in-class data security with advanced encryption
- PoE supported — no separate power adapter needed with a PoE switch
- Moderation mode with screen preview
- Built-in whiteboard and annotation
- Dual network separates guest and employee access
- Central management platform available

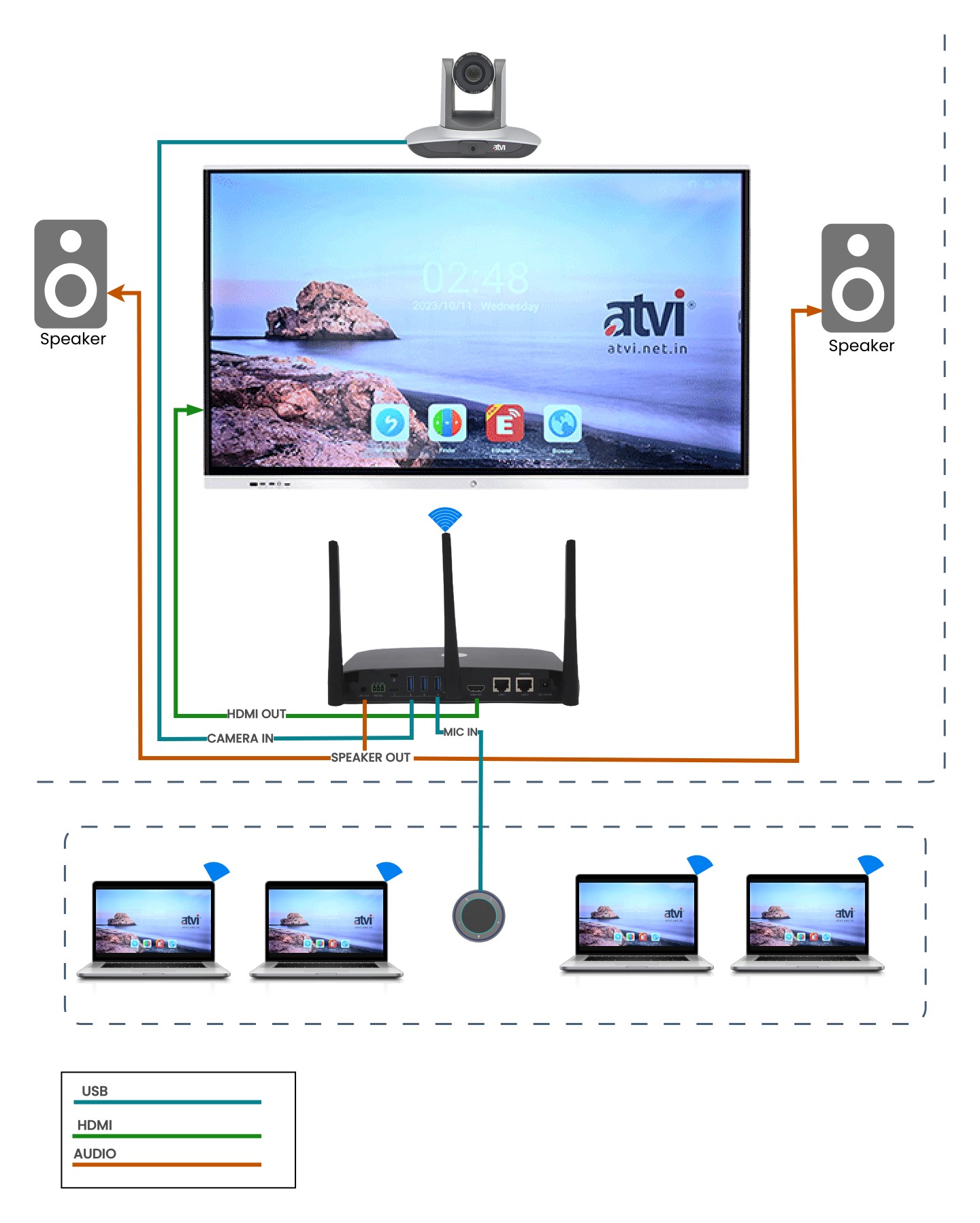

System Diagram
Technical Specifications
| HDMI Output | 1× HDMI 19-pin female |
|---|---|
| Output Resolution | 3840×2160@60Hz, 3840×2160@30Hz, 1920×1080@60Hz |
| Format Compliance | HDMI 1.4 / HDMI 2.0 |
| Video Capacity | 1080P ≤60Hz (AirPlay, app, HDMI & USB-C buttons); 1080P ≤30Hz (USB button) |
| Analog Audio Output | 1× 3.5mm jack |
| LAN | RJ45 ×2 (1000Mbps ×1, 100Mbps ×1) |
| USB | USB 3.0 ×3, Type-C (USB 3.0) ×1, USB 2.0 ×1, Type-C (USB 2.0) ×1 |
| USB Camera | ≤1080P@30, MJPG |
| Audio Input | AirPlay / Miracast / Chromecast, Windows / Mac, USB / BT |
| Audio Output | Jack, HDMI, Jack + HDMI, USB / BT speakerphone |
| Control Connectors | 3.5mm Phoenix terminal / RS232 |
| Simultaneous Windows | ≤ 4 + 12 (4 main + 12 thumbnails) |
| Simultaneous Connections | ≤ 16 |
| Frame Rate | 20–60 FPS |
| Latency | < 100ms (min 20ms) |
| Wi-Fi | IEEE 802.11 b/g/n/ac, 2.4 & 5 GHz, up to 1200Mbps, MIMO 2×2 + 1×1 |
| Encryption | AES, WPA-PSK, WPA2-PSK |
| Control Method | Web GUI, Telnet, RS232 |
| Power | DC 12V / PoE (IEEE 802.3af) |
| Humidity | 20% – 85% RH, non-condensing |
Interested in the WP-12?
Get a quote or book a free live demo with our team.
Specifications and features are subject to change. Refer to the downloadable datasheet for the latest information.
