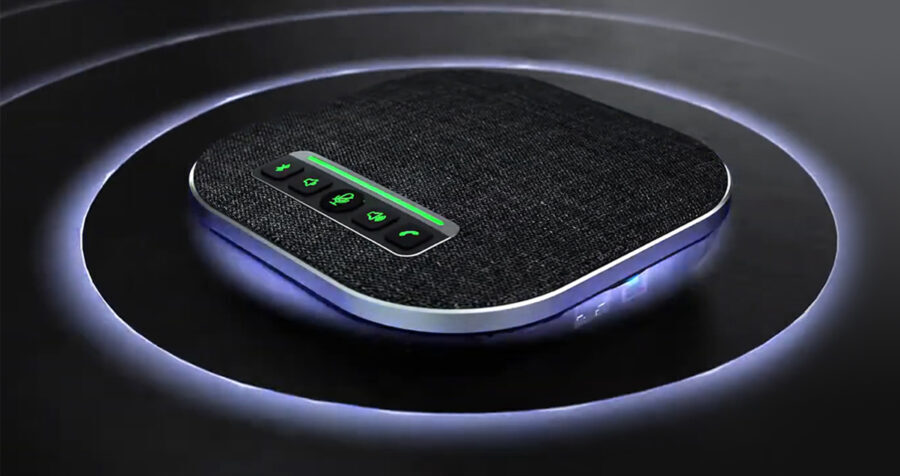

Enjoy crystal-clear, uninterrupted audio with advanced echo removal for smooth two-way communication.

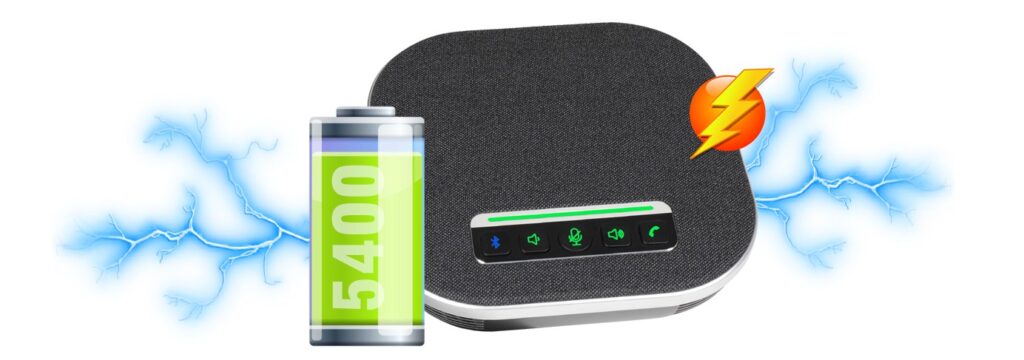

More than 10 hours of use and up to 90 days standby.
Explore additional innovative features designed to enhance performance, efficiency, and user experience.

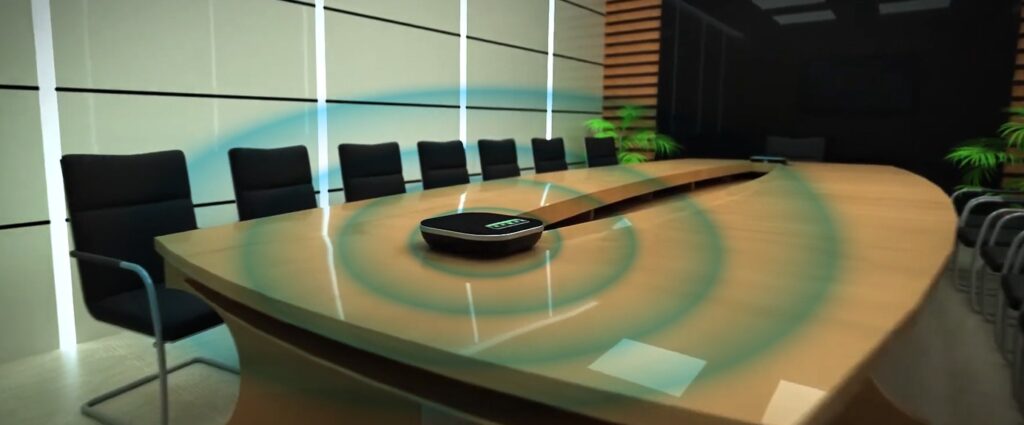

Capture clear, 360° audio with precision, ideal for conferences, classrooms, and collaborative environments.

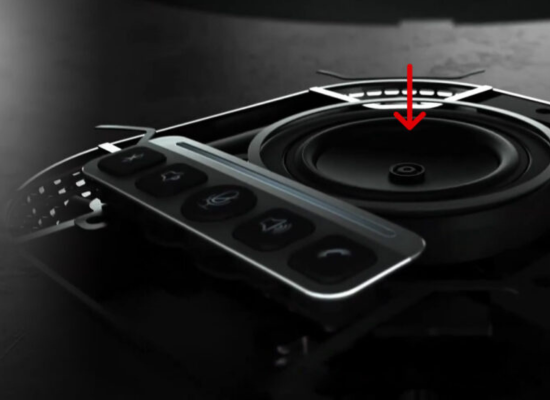

Delivers rich, immersive sound with powerful output, perfect for classrooms, halls, or meetings.
Deliver Immersive Conference Experience
| Module | Parameter | Description |
|---|---|---|
|
MIC |
Microphone |
The main microphone has 4 built-in unidirectional microphones to form a 360-degree sound pickup, and the collection distance is 6 meters. |
|
Audio technical parameters |
Acoustic echo cancellation（AEC) |
Full-duplex echo cancellation depth can reach more than 65DB |
|
Echo length |
≥500MS |
|
|
Two-way noise compression（NC) |
Noise compression reaches 30DB |
|
|
Automatic Direction finding Technology of Intelligent microphone（EMI) |
Support |
|
|
Automatic gain control technology（AGC） |
Support |
|
|
Audio parameter |
Microphone Frequency Response |
100HZ-22KHZ |
|
Speaker Frequency Response |
100HZ-22KHZ |
|
|
Pickup range |
6M，360° |
|
|
Support |
10user and above |
|
|
Speaker volume |
Maximum: 92DB |
|
|
Interface |
Main Microphone |
|
|
Line in/out,3.5MM audio in/out interface |
||
|
RJ45metwork port, Connect with extended microphone |
||
|
Content USB Interface, TYPE-B audio in/out interface |
||
|
Power switch, Long press 3S to open the device |
||
|
Extended Microphone |
||
|
Connected with main microphone |
||
|
RJ45 network port |
||
|
Button description |
Button silk screen |
|
|
Volume button |
decrease/increase volume |
|
|
Bluetooth button |
Turn on/off Bluetooth |
|
|
Off/on hook button |
Off-hook/on-hook（off-hook enter or exit calling statue when there is a skype for business call.) |
|
|
Microphone mute button |
Turn on/off microphone |
|
|
Indicator |
||
|
Bluetooth status indicator |
Blue light flashing – Bluetooth pairing status |
|
|
Blue light is on – Bluetooth is connected |
||
|
Microphone status indicator |
Red light is on – Mute the microphone |
|
|
green light is always on -The microphone is working |
||
|
Working status indicator |
Red light is on -Mute the microphone |
|
|
green light is always on – The microphone is working |
||
|
Power status indicator |
Red light is on- The battery is low and must be charged |
|
|
Flashing green -Charging |
||
|
green light is always on- The battery is fully charged |
||
|
Bluetooth |
|
Support |
|
Power supply |
Built-in battery |
Built-in 5500mA battery , working duration is more than 8 hours. Standby time 90 days |
|
USB |
Able to connect with USB |
|
|
Application environment and specifications |
Reverberation time |
< 0.5 second |
|
Noise level |
< -48 DBA |
|
|
System |
Windows/Andriod/iOS /Linux |
|
|
power supply |
AC100~240V，50-60HZ，12W |
|
|
Operating temperature |
0°C-50°C (Operating statue) |
|
|
humidity |
20%-85% |
|
|
Safety specifications |
CE MARK (LVD & EMC DIRECTIVE ); ROHS |
|
|
Accessories |
Standard accessories |
USB cable/cascade cable/instruction manual/certificate/warranty card |
|
Optional |
Bluetooth Dangle |
