AT2105 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.

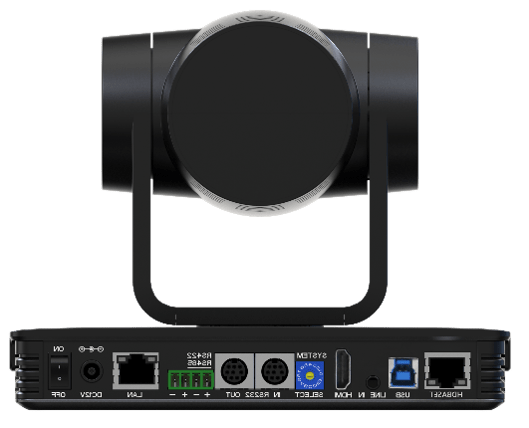

Designed for seamless connectivity, durability, and efficient cable management for a clean and professional setup.
Auto / Manual / One Push / Specify color temperature
| Model | AT2100 -05X | AT2100V -10X |
|---|---|---|
|
Camera Parameter |
||
|
Optical Zoom |
12X f＝3.9～46.8mm |
20X f＝5.2～98mm |
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
|
Effective Pixels |
16: 9, 2.07 megapixel |
|
|
Video Recording Format |
HDMI/SDI video format 1080P60/50/30/25, 1080I60/50, 720P60/50, 1080P59.94, 1080I59.94, 1080P29.97, 720P59.94, 720P29.97 USB3.0 interface video format Main Stream – YUY2/MJPEG/NV12/H.264/H.265: 1920×1080P30,1280×720P30,1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30 Sub Stream – YUY2/NV12: 640×360P30,640×480P30,320×176P30 MJPEG/H.264/H.265: 1920×1080P30,1280×720P30, 1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30 |
|
|
Camera View Angle |
6.3°（tele） 72.5°（wide) |
3.2°（tele） 56°（wide) |
|
AV |
F1.8 – F2.4 |
F1.5 – F3.0 |
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|
|
DNR |
2D & 3D DNR |
|
|
White Balance |
Auto / Manual/ One Push/ Specify color temperature |
|
|
Focus / Aperture / Electronic Shutter |
Auto/Manual/One Push Focus |
|
|
Exposure Mode |
Auto/Manual/Shutter priority/Aperture priority/brightness priority |
|
|
Aperture |
F1.8 ～ F11 CLOSE |
|
|
Shutter Speed |
1/25～1/10000 |
|
|
BLC |
ON/OFF |
|
|
DRC |
OFF/ Dynamic level adjustment |
|
|
Video Adjustment |
Brightness, Colour, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|
|
SNR |
≥50dB |
|
|
Input/Output Interface |
||
|
Video Interfaces |
AT2110-05/12/20/30-SU Model: HDMI, SDI, LAN(POE), RS232-IN/OUT, RS422 & RS485, A-IN, USB3.0(type B compatible with USB2.0), DC12V, power switch AT2110-05/12/20/30-U3 Model: HDMI,LAN(POE), RS232-IN/OUT, RS422 & RS485, A-IN, USB3.0(type B compatible with USB2.0), DC12V, power switch |
|
|
Video Stream |
Dual stream output |
|
|
Video Compression Format |
LAN Interface: H.265, H.264, dual stream output USB3.0 Interface: Main stream supports YUY2/MJPEG/H.264/NV12/H.265 Sub stream supports YUY2/MJPEG/H.264/NV12 |
|
| Topic | Details |
|---|---|
|
Audio Input Interface |
Double track 3.5mm linear input |
|
Audio Output Interface |
HDMI, SDI, LAN, USB3.0 |
|
Audio Compression Format |
AAC |
|
Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI(Optional)
Support remote upgrade, reboot and reset |
|
Control Interface |
RS232-IN, RS232-OUT, RS422 (compatible with RS485) |
|
Control Protocol |
VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps |
|
Power Interface |
HEC3800 outlet (DC12V) |
|
Input Voltage |
DC12V±10%v |
|
Input Electric Current |
Maximum: 1A |
|
Power Consumption |
Maximum: 12W |
|
PTZ |
|
|
Pan/Tilt Rotation |
±170°, -30°～+90° |
|
Pan Control Speed |
0.1 -100°/sec |
|
Tilt Control Speed |
0.1-45°/sec |
|
Preset Speed |
Pan: 100°/sec, Tilt: 45°/sec |
|
Preset Number |
255 presets (10 presets by remote controller) |
|
Parameter |
|
|
Stored Temperature |
-10℃~+60℃ |
|
Storage Humidity |
20%~95% |
|
Working Temperature |
-10℃~+50℃ |
|
Working Humidity |
20%~80% |
|
Dimension |
181mmX115mmX149mm |
|
Weight |
1.15KG |
|
Attachment |
|
|
Package |
Power Supply, RS232 control cable, USB3.0 connection cable, Remote Control, User Manual |
|
Optional Accessories |
Ceiling / Wall Mount (Extra Cost) |
|
Certification |
BIS,CE,ROHS,FCC |
